Compact SMT wire wound resistors offering high precision, stability, and power handling for demanding electronic applications.
Product Specifications | |||||
|---|---|---|---|---|---|
THUNDER Type | RS - 2 | RS - 3 | RS - 4 | RS - 5 | |
Cross to Vishay's Type | WSC2512 | WSC-1; WSC2515 | WSC-2; WSC4527 | WSC6927 | |
Rated Dissipation, P70 | 1.0W | 2.0W | 3.0W | 5.0W | |
Standard Resistance Range | 0.1Ω to 200Ω | 0.1Ω to 200Ω | 0.1Ω to 300Ω | 0.1Ω to 500Ω | |
THUNDER Non-Inductance Type | SF - 1 | SF - 2 | SF - 3 | SF - 5 | |
Standard Resistance Range | 0.1Ω to 20Ω | 0.1Ω to 20Ω | 0.1Ω to 50Ω | 0.1Ω to 50Ω | |
Resistance Tolerance | C(±0.25%); D(±0.50%); F(±1.0%); G(±2.0%);J(±5.0%); | ||||
Temperature Coefficient | C1(+100ppm/°C); C2(±50ppm/°C); C3(±25ppm/°C) | ||||
Operating Temperature Range | -55°C to 175°C | ||||
Dimension | Body ±0.5(mm) | A=6.6, B=3.9, C=3.4 | A=8.5, B=3.9, C=3.5 | A=10.5, B=5.5, C=4 | A=14.5, B=6.5, C=6 |
Terminal ±0.5(mm) | D=1.5, F=1.5 | D=1.5, F=1.8 | D=2, F=2.5 | D=2, F=3 | |
Minimum Soldering Pad (mm) | W=3, H=3.0, L=9.9 | W=2.5, H=3.0, L=10 | W=4, H=4, L=14 | W=5, H=4, L=17 | |

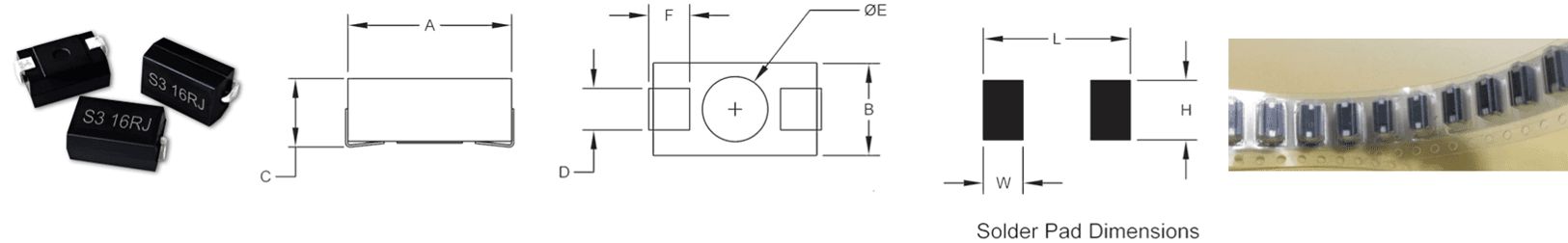

Outlines |  | ||||
Minimun Parking Quantity Per Reel | 3000 | 2500 | 2000 | 1000 | |
